CURRENT TRANSFORMERS

Several different designs

Different designs, based on customer choice and technical considerations.

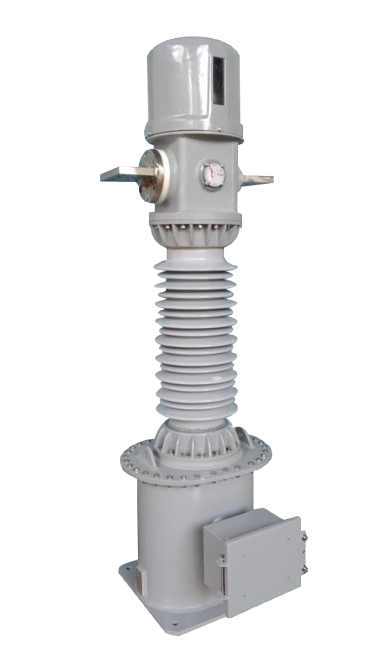

DT Current Transformer

Dead Tank Type OIP Current Transformers

  • Dead tank design allows high accuracy at even the lowest ratios.
  • Excellent seismic performance with low center of gravity.
  • Designed to be maintenance free for 20 years.

Current transformers from 6.6 kV up to 765 kV, with a focus on high accuracy for metering and protection.

Nearest Equivalent Specifications

  • IEC 61869-2
  • ANSI C57.13
  • IS 16227-2

Capabilities

ParameterRange
Voltage6.6 kV - 765 kV
ApplicationsMetering and Protection
Core MaterialCRGO Steel or Nanocrystalline

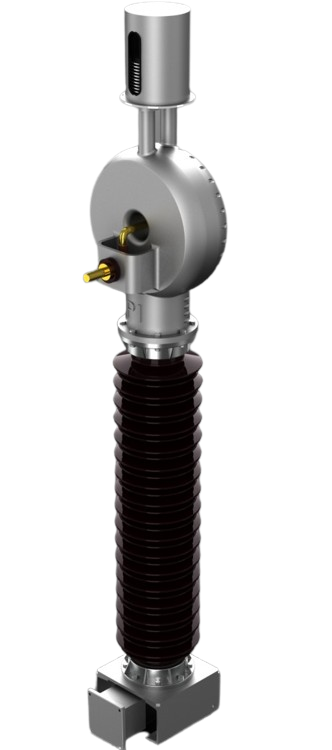

LT Current Transformer

Head Type OIP Current Transformers

  • This design of current transformer reduces the impedance of the primary winding.
  • They are particularly attractive at high primary currents.
  • Designed to be maintenance free for 20 years.

High thermal capacity current transformers for industrial and utility applications.

Nearest Equivalent Specifications

  • IEC 61869-2
  • ANSI C57.13
  • IS 16227-2

Capabilities

ParameterRange
Voltage6.6 kV - 765 kV
ApplicationsMetering and Protection
Core MaterialCRGO Steel or Nanocrystalline
